The New and Improved Therapeutic Option for Dogs & Cats to Bypass Ureteral Obstructions

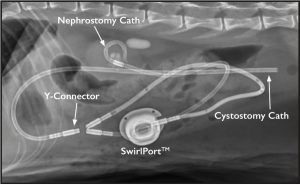

Since the SUB™ system was first introduced in 2009, we have consistently strived to provide the best possible solution for cats and dogs worldwide. Redesigned to reduce some of the most common complications seen in prior SUB™ devices, the SUB™ 3.0 consists of one or two locking loop pigtail catheters placed in the kidney(s), one straight catheter placed in the bladder, a subcutaneous titanium SwirlPort™, and a “Y” or “X” Connector junction for securing the catheters.
The SUB™ is packaged as a sterile kit with surgical suggestions and instructions for use. A complete surgical video and SUB™ nephrostomy placement video that compliments the printed instruction guide are available on YouTube:

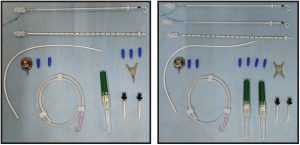

SUB™ 3.0 w/Y-Connector (left) and SUB™ 3.0 w/X-Connector (right)
INCLUDED IN THE KIT
SwirlPort Access Port and Catheter Tubing, Locking Loop Nephrostomy Catheter(s), Straight Bladder Catheter, “Y” or “X” Connector, .035” J-Tip Guidewire, 2 x Posi-grip Huber Point Needles, Over-the-Needle IV Catheter(s), Blue Boot Catheter Connectors
NOT INCLUDED in the kit –Optional Extras
Sterile Cyanoacrylate Tissue Glue
SUB™ Flush Kit
T-FloLoc™ Flushing/Locking Solution
Downloads
System
- Reduces procedure time
- Minimizes subcutaneous dissection
- Easier device exchange (if needed)
- Reduces incidence of kinks, clots and mineralization
SwirlPort™
- Low-profile
- Light weight
- Spherical chamber provides superior flow
Locking-Loop Catheter
- Custom design with small, 8mm diameter locking pigtail
- Gradually tapered tip reduces trauma and eases insertion
- Metal stiffening cannula eases placement in kidney and bladder
- Radiopaque, medical grade plastic with embedded marker band ensures visibility under fluoroscopy
- Silicone/Dacron Cuff secures catheters and prevents dislodgment
Choose the appropriate size
SUB3-2001K – for use in cats and small dogs
– 1 x 6.5F x 20cm Locking Loop Catheter with Stiffening Cannula
– 1 x 7F x 23.1cm Bladder Catheter with Stiffening Cannula
– 1 x 7F x 30cm Polyurethane Catheter Tubing
– 1 x Low-Profile SwirlPort™
– 1 x 3-way “Y” Connector
– 1 x 18G Over-the-Needle Catheter
– 1 x 0.035” J-Tip Guidewire
– 5 x Blue Boot Catheter Connectors
– 2 x 22G x 0.75” Posi-Grip Huber Point Needle
– Surgical Instructions
SUB3-2002K – for use in larger dogs
– 1 x 6.5F x 35cm Locking Loop Catheter with Stiffening Cannula
– 1 x 7F x 38.1cm Bladder Catheter with Stiffening Cannula
– 1 x 7F x 30cm Polyurethane Catheter Tubing
– 1 x Low-Profile SwirlPort™
– 1 x 3-way “Y” Connector
– 1 x 18G Over-the-Needle Catheter
– 1 x 0.035” J-Tip Guidewire
– 5 x Blue Boot Catheter Connectors
– 2 x 22G x 0.75” Posi-Grip Huber Point Needle
– Surgical Instructions
SUB3-3001K – for use in cats and dogs, typically for obstructive neoplasia
– 2 x 6.5F x 20cm Locking Loop Catheter with Stiffening Cannula
– 1 x 7F x 23.1cm Bladder Catheter with Stiffening Cannula
– 1 x 7F x 30cm Polyurethane Catheter Tubing
– 1 x Low-Profile SwirlPort™
– 1 x 4-way “X” Connector
– 2 x 18G Over-the-Needle Catheter
– 1 x 0.035” J-Tip Guidewire
– 6 x Blue Boot Catheter Connectors
– 2 x 22G x 0.75” Posi-Grip Huber Point Needle
– Surgical Instructions
Indications for using the SUB™ 3.0 include:
- Ureteral Obstruction associated with Ureteral Stone Disease
- Ureteral Strictures – the abnormal narrowing of the ureter
- Ureteral Stent Reaction
- Ureteral Stent Intolerance
- Malignant Obstructions
